Port of Virginia Wharf Facility

Portsmouth, VA
Building marine infrastructure to support the U.S. East Coast’s leading gateway for global trade.

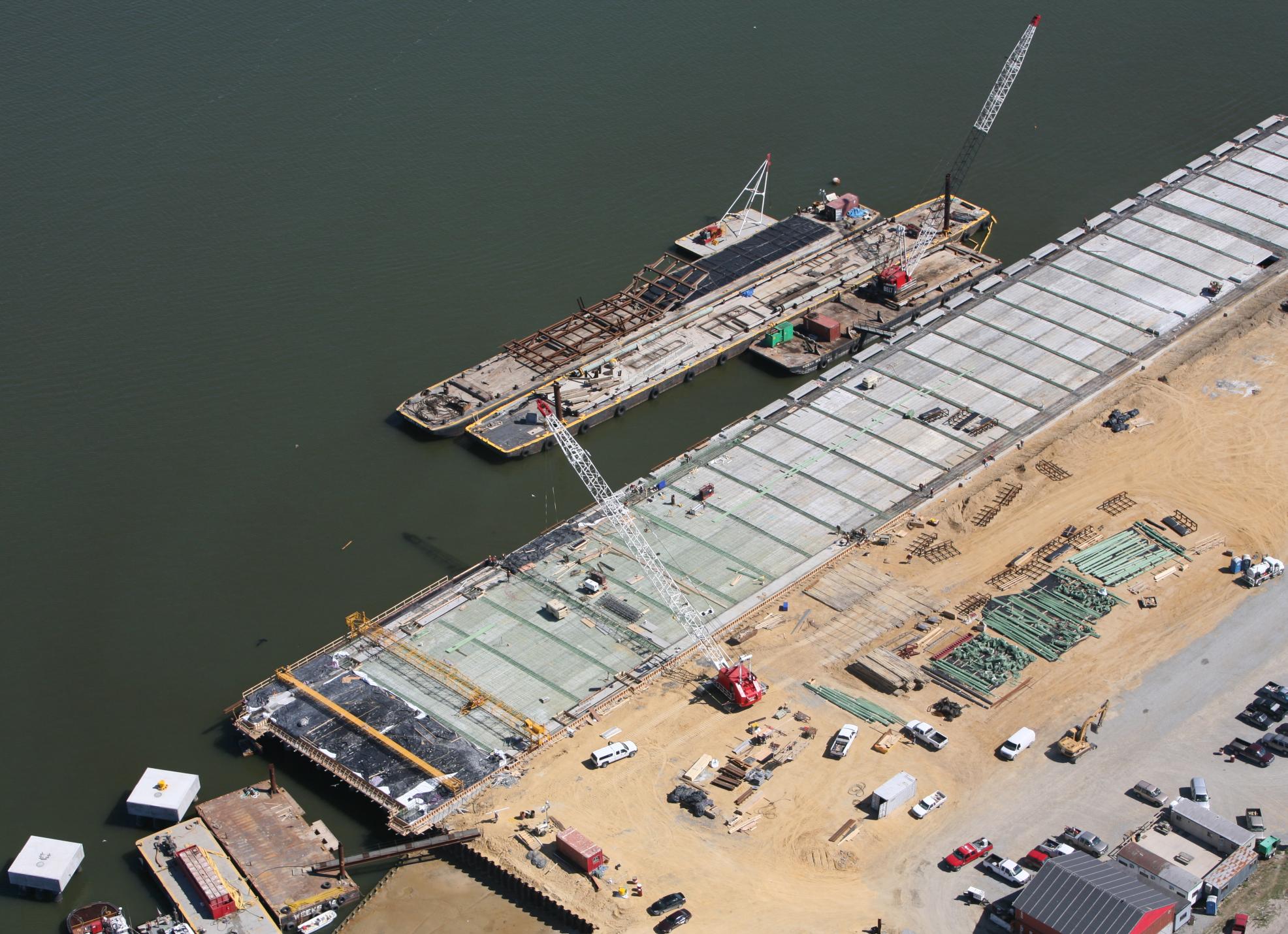

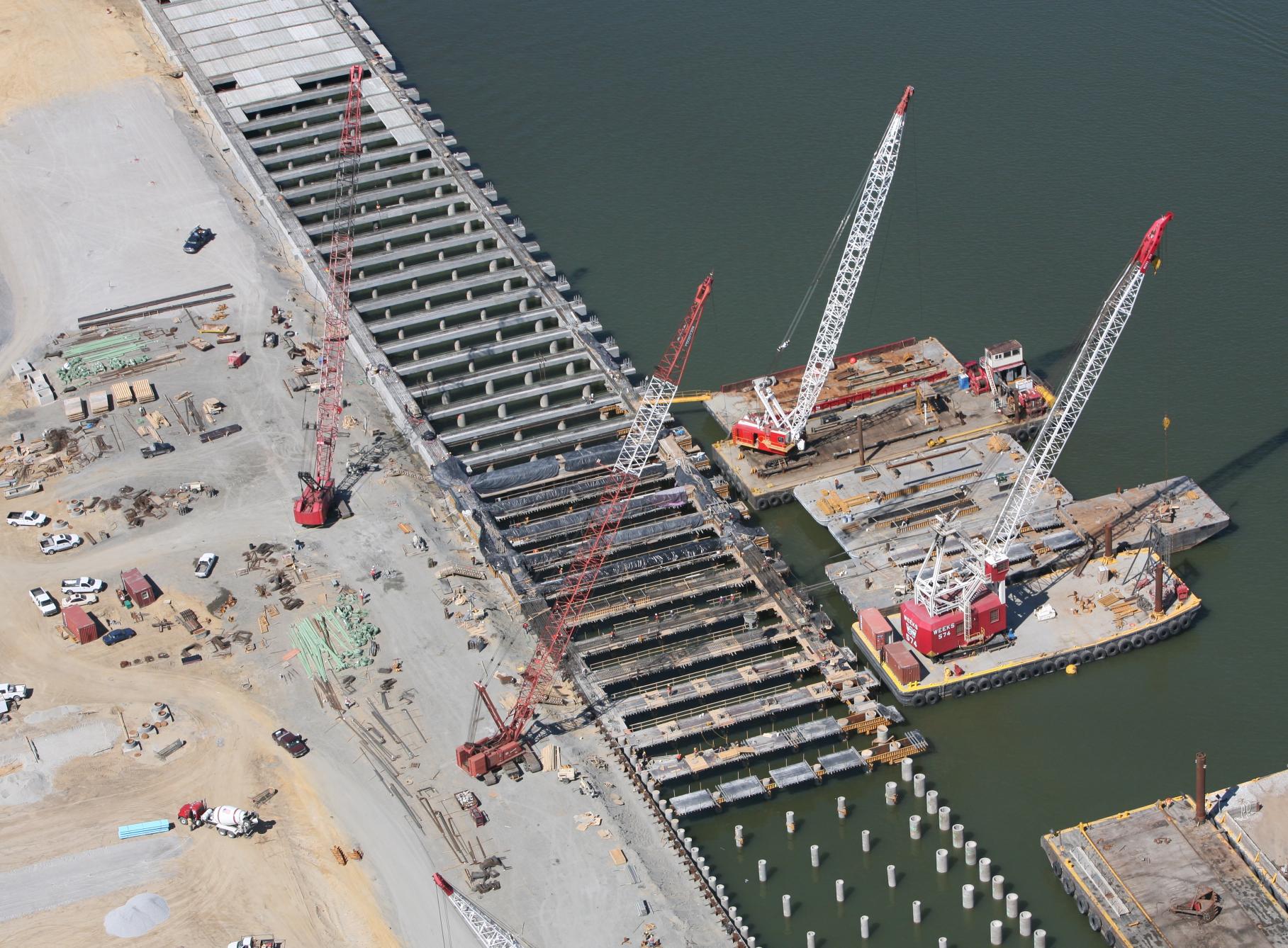

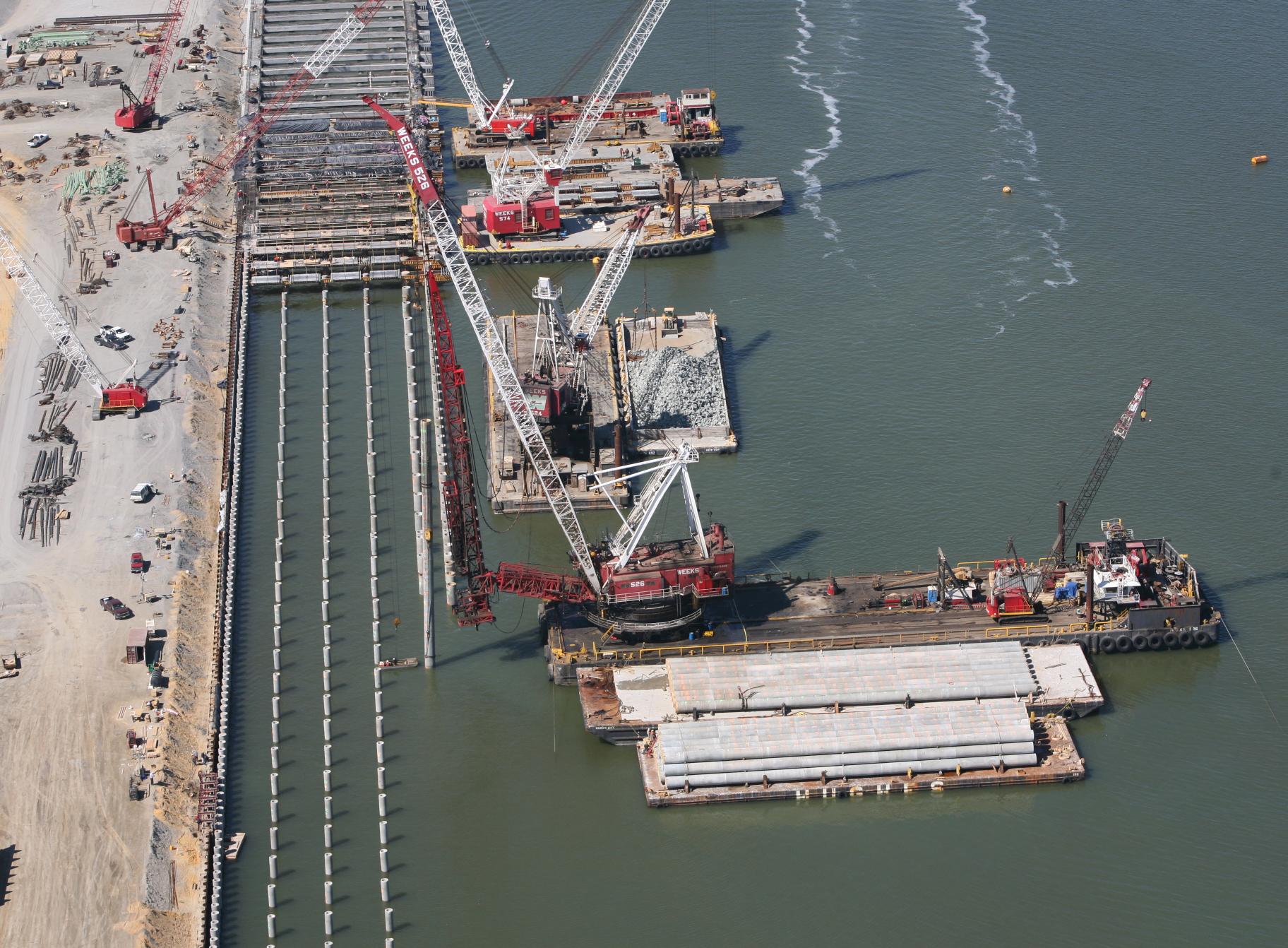

This multi-faceted project began with the installation of 248,558 square feet of HZ/AZ Combi-Wall and 98,340 square feet of AZ-18 sheet pile anchor wall to form a 3,750 LF bulkhead on the edge of the Elizabeth River. Weeks Marine drove 1,212 concrete cylinder piles (36” and 54” diameter and up to 164’ long) to support a 350,000 square foot concrete deck. Cast-in-place pile cap beams spanned the wharf transversely, while two 8’ wide longitudinal beams were centered under the 100’ gage crane rails. Prestressed slabs weighing 40 tons spanned between the transverse beams and a Bidwell screed was used to place and finish an 8” thick concrete deck topping. Almost a half a million square feet of 12” thick concrete paving was installed immediately on the landside of the wharf. The project also included more than 400,000 cubic yards of earthwork, underground utilities (water and electricity), and the installation of a wide variety of mooring, fendering, and anchoring hardware. Our teams also placed approximately 60,000 tons of rock slope protection.

Location
Portsmouth, VA
Expertise
Client
A.P.M. Terminals North America
Related Services
Wharf Construction, Marine Infrastructure
